Aputure Fresnel CF-16
Equipment description

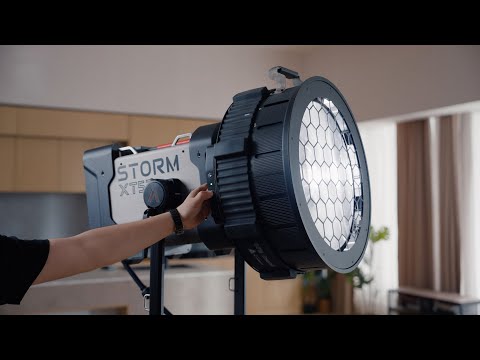

The CF16 Fresnel is a compact, motorized fresnel lens with a spot-flood range of 18º-50º. The CF16 Fresnel is designed for use with the STORM XT52 and can amplify the lamp's output by up to 7 times. The motorized dual-expanding focus system extends at both ends of the barrel, and is designed to reduce total size and weight and smooth falloff. Remote control is available through DMX, CRMX, Sidus Link, or Sidus Link Pro. The CF16 can be used in manual mode with the optional manual cover plate. Includes CF16 Barn Doors for shaping control.
Available with either the CF16 Rolling Soft Case or CF16 Flight Case for storage and transport of both fresnel and barn doors.
Technical specification
Motorized CF16 Fresnel Specifications
Optical Specifications
Beam Angle Full Spot18º
Beam Angle Full Flood50º
Focus Motor Throw Duration12 seconds
Environmental Specifications
IP RatingIP65
Dimensions
CF16 Fresnel56.4 x 51.9 x 23.4cm
22.2 x 20.4 x 9.2in
22.2 x 20.4 x 9.2in
Rolling Case83.0 x74.0 x 48.0cm
32.7 x 29.1 x 18.9in
32.7 x 29.1 x 18.9in
Flight Case74.0 x 37.5 x 83.5cm
29.1 x 14.8 x 32.9in
29.1 x 14.8 x 32.9in
Weight
CF16 Fresnel11.80kg / 26.01lbs
Rolling Case17.20kg / 37.92lbs
Flight Case29.00kg / 63.93lbs
