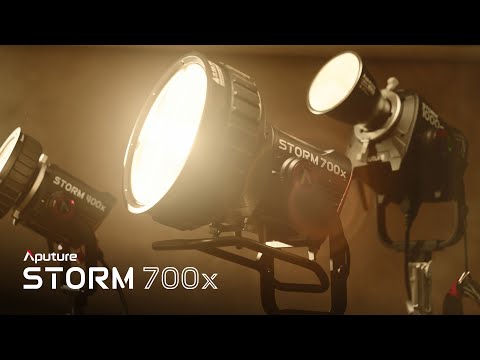

Aputure Storm 700x Blair
Equipment description
The Aputure STORM 700x utilizes the BLAIR (Blue/Lime/Amber/Indigo/Red) light engine, delivering the highest quality white light and greatest +/- green adjustability of any LED technology. The BLAIR light engine's indigo emitters enhance fluorescing materials like natural daylight and tungsten sources.
The STORM 700x is brighter than any other point source LED light in its power range, weights just 5.15kg, and can mount on either a baby or junior stand.
The revolutionary BLAIR light engine can also output saturated colors across more than 70% of Rec.2020 color space using Limited HSIC+ and x,y control modes. Achieve deep crimson sunsets, rich sodium vapor ambers, and subtle color effects without gels.
Technical specification
STORM 700x Specifications
Color Specifications
LED ChipsetBLAIR
CCT2,500K – 10,000K
Green-Magenta Adjustment Range±G 100% (Full ASC MITC Range)
CRI≥95
TLCI≥95
SSI (Tungsten)87
SSI (D56)87
TM-30 RF (Average)95
TM-30 RG (Average)100
Power Specifications
Max Power Consumption880W
Max Power Output700W
Operating Voltage100V ~ 240V / 50-60 Hz
USB-A Power Port SpecificationsOut 5V/0.5A
Optical Specifications
Native COB Beam Angle58º
Included Reflector Beam Angle35º
Environmental Specifications
Weather Resistance RatingIP65
Operating Temperature-20°C ~ 45°C / -4°F ~ 113°F
Storage Temperature-40°C ~ 80°C / -40°F ~ 176°F
Cooling MethodActive air cooling
Lamp Head Fan Noise Levels (at 1m) Smart Mode32 dBA
Lamp Head Fan Noise Levels (at 1m) High Mode36.9 dBA
Lamp Head Fan Noise Levels (at 1m) Medium Mode31.8 dBA
Lamp Head Fan Noise Levels (at 1m) Silent Mode0 dBA
Control and Firmware
Control MethodsOn-board, Sidus Link App, Sidus Link Pro App, DMX/RDM, CRMX
Data Ports1x 5-Pin DMX In, 1x 5-Pin DMX Out
CRMX ChipBuilt-in TimoTwo module
Firmware UpgradeableSidus Link, Sidus Link Pro, USB-A Drive
Wireless Range Sidus Bluetooth≤100m / ≤262.5ft
Wireless Range CRMX (TimoTwo)≤100m / ≤262.5ft
Dimensions
Lamp Head with Yoke27.4 x 27.2 x 50.3 cm
10.8 x 10.7 x 19.8 inch
10.8 x 10.7 x 19.8 inch
Control Box12.3 x 15.4 x 31.4 cm
4.8 x 6.1 x 12.4 in
4.8 x 6.1 x 12.4 in
Weight
Lamp Head With Yoke5.15 kg / 11.35 lbs
Control Box4.10 kg / 9.04 lbs
AC Power Cable0.60 kg / 1.32 lbs
Head Cable1.06 kg / 2.34 lbs
BM6835 35º Reflector0.35 kg / 0.77 lbs
Lightning Clamp
