ARRI Alexa 35 eXtreme 4.6k
Equipment description
Once again newest camera ARRI Alexa35 Xtreme - first in Poland available in ATM System.
Beside all known features of original Alexa35, now we have a slow motion options.
ARRI’s new ALEXA 35 Xtreme will replace the regular ALEXA 35. It goes extremely fast, with slow motion speeds up to 660 fps.

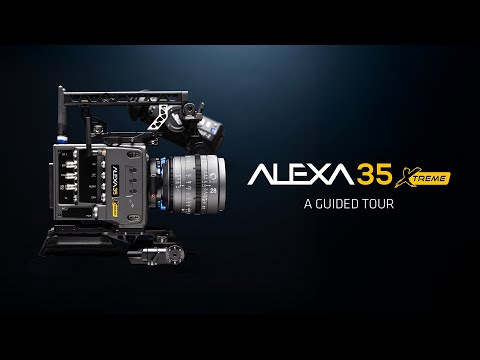

On the outside, the 35 Xtreme looks the same as ALEXA 35, except for the extremely Xtreme graphic on the camera right side and taller antennas. ALEXA 35 Xtreme has a new processor, more efficient cooling and some new electronics. The sensor, body, controls, buttons, finder, menu and accessories remain the same.
Technical specification
| ARRI ALEXA 35 XTREME — Technical Specs | |
|---|---|
| Model | ALEXA 35 Xtreme |
| Sensor Type | Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern color filter array |
| Sensor Maximum Number of Photosites and Size | 4608 x 3164 27.99 x 19.22 mm / 1.102 x 0.757″ Ø 33.96 mm / 1.337″ |
| Sensor Frame Rates | 0.75 – 660 fps* |
| Weight | ~3.0 kg / 6.6 lbs (camera body with three antennas and LPL Mount (LBUS)) |
| Photosite Pitch | 6.075 μm |
| Sensor Active Image Area (photosites) | |
| 4.6K 3:2 Open Gate: 4608 x 3164* 4.6K 16:9: 4608 x 2592* 4K 16:9: 4096 x 2304 3.8K 16:9: 3840 x 2160 3.8K 2.39:1: 3840 x 1608 3.3K 6:5: 3328 x 2790* 2K 16:9 S16: 2048 x 1152 HD 16:9 S16: 1920 x 1080 |
|
| Dynamic Range / ISO / Shutter | |
| Dynamic Range | 17 stops |
| Exposure Index | EI 160 – 6400 (1/3-stop increments) |
| Shutter | Electronic shutter, 1.0°–356° or 1s–1/8000s |
| Recording Formats | |
| Formats | MXF/ARRIRAW* MXF/ARRICORE MXF/Apple ProRes 4444 XQ / 4444 / 422 HQ |
| Recording Media | Codex Compact Drive 1TB (CA08-1024) Codex Compact Drive 2TB (CB16-2048) Codex Compact Drive Express 1TB (CP08-1024) |
| Recording Modes | |
| Modes | Standard real-time recording, Pre-recording* |
| File Container Sizes | 4.6K 3:2 Open Gate: 4608 x 3164 4K 16:9: 4096 x 2304 HD 16:9: 1920 x 1080 (identical to recording file image content) |
| Viewfinder | |
| Type | Multi Viewfinder MVF-2 with 4″ flip-out touchscreen monitor |
| Technology | OLED + LCD |
| Resolution | 1920 x 1080 |
| Diopter | -5 to +5 |
| Color / Look Control | |
| Color Output | Rec 709, Rec 2020, Rec 2100 PQ/HLG LogC4, Custom Color Management* |
| Look Control | ARRI Look File ALF-4 (3D LUT import, ASC CDL) ARRI Look Library*, ARRI Textures* |
| Filters | |
| ND Filters | Clear, 0.6, 1.2, 1.8 (built-in motorized) |
| Optical Filters | Fixed low-pass, UV, IR |
| Connectivity | |
| Outputs | 2x 12G SDI, 2x VF CoaXPress, USB-C, Ethernet, GPIO |
| Wireless | WiFi (IEEE 802.11a/ac/b/g/n), ARRI ECS radio |
| Remote | MVF-2, CCM-1, App, ECS, Web (Ethernet/WiFi), CAP, Skaarhoj panel |
| Lens Mounts | |
| Available Mounts | ARRI LPL, PL-to-LPL, PL (LBUS), PL (Hirose), EF (LBUS), Leitz M |
| Flange Focal Depth | LPL: 44 mm, PL: 52 mm |
| Power | |
| Input | 20.5–33.6 V DC (LEMO 8-pin / BAT interface) |
| Consumption | ~81 W (camera + MVF-2) |
| Outputs | 24V RS, 12V LEMO, LBUS, Audio, Ethernet |
| Physical / Environmental | |
| Dimensions (HxWxL) | 147 x 152.5 x 203 mm / 5.8 x 6.0 x 8.0″ |
| Operating Temperature | -20°C to +45°C (standard), up to +40°C for high fps |
| Storage Temperature | -30°C to +70°C |
| Sound Level | < 20 dB(A) @ 30fps, 4K 16:9, ≤ +30°C |
| Licenses | |
| Included | ALEXA 35 Xtreme Premium License Look License ARRIRAW License Open Gate / Anamorphic License Highspeed License Pre-record License Multicam License (optional) |
